Cell Signaling

Introduction

Signal transduction is one of the most widely studied areas in biology. Extracellular information perceived at the surface of a cell must be translated into an intracellular response that involves a complex network of interwoven signaling cascades. These signaling events regulate cellular responses like proliferation, differentiation, secretion and apoptosis. Signal transduction cascades are generally triggered by the binding of ligands, such as growth factors, cytokines, neurotransmitters, or hormones, to a receptor. These receptors transmit the stimulus to the interior of the cell, where the signal is amplified and directed through a signaling pathway.

The propagation of the primary signal involves a wide array of enzymes with specialized functions. Many of these signaling enzymes propagate the signal by post-translationally modifying other proteins. Protein phosphorylation, one of the most common post-translational modifications, plays a dominant role in almost all signaling events and involves the transfer of a phosphate group from adenosine triphosphate (ATP) to the target protein (van der Geer et al. 1994). In general, phosphorylation either activates or inactivates a given protein to perform a certain function. Protein kinases and phosphatases are the enzymes responsible for determining the phosphorylation state of cellular proteins and, thus, whether a signal gets transduced within a cell. Changes in the level, subcellular localization and activity of kinases and phosphatases have consequences for normal cell function and maintenance of cellular homeostasis (De Meyts, 1995; Denton and Tavare, 1995).

The human genome is reported to contain 518 protein kinases that are involved in phosphorylation of 30% all cellular proteins (Manning et al. 2002). Taken together, genes for protein kinases and phosphatases represent five percent of the human genome (Cohen, 2001). Many other phosphotransferases play equally important roles in cellular reactions that use ATP as substrate but are not classified as protein kinases. These include PI3-kinases (Shears, 2004), lipid kinases such as sphingosine kinases (French et al. 2003) and sugar kinases such as glucokinase (Grimsby et al. 2003). Changes in the level, activity or localization of these kinases, phosphotransferases and phosphatases greatly influence the regulation of key cellular processes. Because of the role that these enzymes play in cellular functions and in various pathologies, they represent important drug targets (Cohen, 2002). By 2002, more than twenty-six small molecule inhibitors of protein kinases alone were either approved for clinical use or in phase I, II or III clinical trials (Cohen, 2002; Pearson and Fabbro, 2004).

This chapter describes the tools available for investigating the activities of kinases and phosphatases that are involved in signaling cascades. We describe a variety of technologies including luminescent and fluorescent assays for kinase and phosphatases. The phosphorylation state of the substrates of kinases can also be informative when studying cell signaling. We describe a variety of antibodies for detecting the phosphorylated forms of some kinase substrates as well as kinase substrates and inhibitors that can be used as tools to analyze kinase activities in samples.

These signaling pathways are complex and intertwined with each other. An interactive cell signaling application that presents the PI3K/mTOR and MAPK/ERK pathways is available for the iPad.

The MAPK Pathways

The Mitogen-Activated Protein Kinase (MAPK) signaling pathways play an important role in signal transduction in eukaryotic cells where they modulate many cellular events including mitogen-induced cell cycle progression through G1 phase, embryonic development, cell movement, apoptosis and cell differentiation. MAPK pathways can be activated through diverse mechanisms including G-protein coupled receptors (GPCRs), receptor tyrosine kinases (RTKS), Ser/Thr membrane receptors, inflammatory cytokines and environmental stresses including osmotic shock and ionizing radiation (Kyriakis and Avruch, 2001).

Because MAPK signaling is integral to key cellular and developmental processes, disruption of MAPK signaling or its regulation leads to a host of pathologies including cancers, neurodegenerative diseases, and developmental disorders (Murphy and Blenis, 2006). MAPK pathways are organized in three tiers of kinases consisting of a MAP kinase (MAPK); an activator of MAP kinase (MAP Kinase kinase or MEK) and a MAP Kinase Kinase kinase (MEKK, MAP3K or MEK kinase; Kyriakis and Avruch, 2001; Figure 7.1). There are several distinct MAPK pathways, including the extracellular signal-related kinases (ERK1/2 pathway) and three stress-activated pathways (p38 MAPK; SAPK/JNK 1,2,3; and ERK5/BMK1; Kyriakis and Avruch, 2001; Pimenta and Pascual, 2007).

Activated ERKs phosphorylate many targets including members of the 90 kDa ribosomal S6 kinases (RSKs ; Murphy and Blenis, 2006). Activated ERK1 and 2 can translocate into the nucleus, where they phosphorylate transcription factors such as cAMP-response element-binding protein (CREB), and ELK1, among others, to regulate expression of genes controlling the cell cycle and cell survival. (Murphy and Blenis, 2006). Aberrant activation of the MAPK/ERK pathway can play roles at several stages of tumorigenesis. Inappropriate phosphorylation of targets like myosin light chain kinase, calpain, focal adhesion kinase and paxilin promote cell migration (Kim and Choi, 2010). Because the ERK pathway also induces matrix metalloproteinase expression, constitutive activation can aid tissue invasion by tumor cells (Kim and Choi, 2010). ERK1/2 signaling also regulates some proapoptotic protein activities and in conjuction with PI3K-mTOR signaling can promote the survival of cancer cells (Mendoza et al. 2011; Roberts and Der, 2007). An animated presentation highlighting some of the events during MAPK signaling is available.

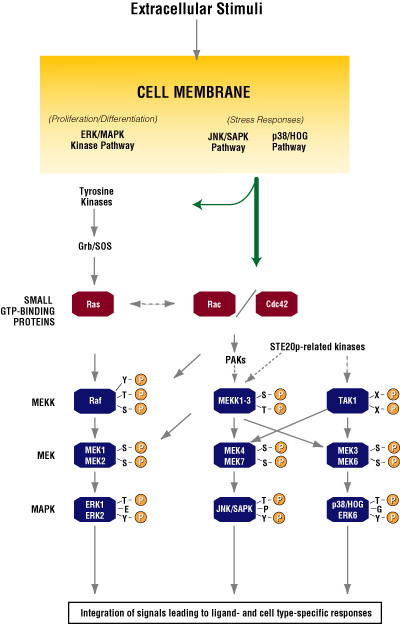

Figure 7.1. Activation of different MAPK signaling cascades by different extracellular stimuli. The ERK, JNK and p38 cascades all contain the same series of three kinases. A MEK Kinase (MEKK) phosphorylates and activates a MAP Kinase Kinase (MEK), then MEK phosphorylates and activates a MAP Kinase (MAPK).

Signal transduction cascades involving ERK/MAPK enzymes are also regulated by the activities of protein phosphatases. Several dual-specificity protein phosphatases have been identified that can differentially dephosphorylate MAPK, JNK or p38 enzymes (Neel and Tonks, 1997; Ellinger-Ziegelbauer et al. 1997). In addition, individual Ser/Thr (e.g., PP2A) or Tyr (e.g., PTP1) phosphatases also appear to regulate the activity of the ERK/MAPK enzymes by dephosphorylating either core residue (Hunter, 1995; Keyse, 1995; Alessi, 1995; Doza, 1995). Thus, the cell can tightly regulate the activity of the ERK/MAPK enzymes by judicious use of different combination of MEKS, mono- and dual-specificity protein phosphatases and the subcellular localization of each enzyme to elicit the appropriate physiological response (Payne, 1991; Zhang, 2001).

Products Suitable for Studying the MAPK/ERK Pathway

ADP-Glo™ Kinase Assay (Cat.# V9101)

ADP-Glo™ Max Kinase Assay (Cat.# V7001)

Receptor Tyrosine Kinase Assay Systems

CMGC Kinase Enzyme Systems (including CDK, MAPK, GSK3 and CLK families)

AGC Kinase Assay Systems

Kinase-Glo^® Luminescent Kinase Assay (Cat.# V6711)

Kinase-Glo^® Plus Luminescent Kinase Assay (Cat.# V3771)

Kinase-Glo^® Max Luminescent Kinase Assay (Cat.# V6071)

U0126 MEK inhibitor (Cat.# V1121)

PD98059 (Cat.# V1191)

EGF Receptor (Cat.# V5551)

Anti-ACTIVE^®s MAPK pAb, Rabbit (pTEpY), Rabbit (Cat.# V1141)

Anti-ERK1/2 pAb, Rabbit (Cat.# V1141)

Anti-pT183 MAPK pAb, Rabbit (Cat.# V8081)

The PI3K/mTOR Pathway

Phosphoinositol 3-Kinases (PI3Ks) catalyze the transfer of the gamma phosphate group from ATP to the -OH group at the 3´ position of three different substrates: phosphatidylinositol (PI), phosphatidylinositol-4-phosphate (PI4P), and phosphatidylinositol-4,5-bisphosphate (PI(4,5)P₂ or PIP₂). Signaling through PI3K activity modulates many cellular processes including cell growth, gluconeogenesis and glycolysis, motility, and differentiation. Mutations of genes that encode proteins within the PI3K signaling pathway have been implicated in a host of diseases including cancer and neurodegenerative disease.

There are three classes of PI3Ks. Class I PI3Ks catalyze conversion of PIP₂ to (phosphatidylinositol-3,4,5- bisphosphate) PIP₃ , and can be further subdivided based on the pathway through which they are activated. Class IA PI3Ks are activated through receptor tyrosine kinases (RTKs), and Class 1B PI3Ks are activated through G protein-coupled receptors (GPCRs) (Chaloub and Baker, 2009). Class II PI3Ks are associated with clathrin-coated vesicles and may help regulate membrane trafficking (Chaloub and Baker, 2009). Class III PI3-Ks are the only class conserved in lower and higher eukaryotes. These kinases produce PI(3)P as their product and are required for autophagy (Chaloub and Baker, 2009).

Class I PI3Ks consist of two subunits: one regulatory and one catalytic. The regulatory subunit binds to phosphotyrosine residuses on the intracellular domains of RTKs or adaptor proteins; this binding relieves intramolecular inhibition of the catalytic subunit and localizes the catalytic subunit near the inner leaflet of the plasma membrane and its substrate, PI(4,5)P₂ (Chaloub and Baker, 2009). Alternatively PI3K can also be stimulated by activated Ras, which binds directly to the catalytic subunit (Mendoza et al. 2011).

The PI3K product propagates the signal from the RTK by binding to specific regions of downstream target proteins, such as the FYVE zinc-finger, pleckstrin homology (PH) and Phox-homology (PX) domains (Courtney et al. 2010). One such target protein is the kinase, AKT, which must be dually phosphorylated by PDK1 and mTORC2 (mTOR complex 2) for complete activation (Mendoza et al. 2011) .

Once AKT is activated it interacts with with the GTPase activation protein (GAP) tuberous sclerosis complex 2 and suppresses its GAP activity to release the GTPase Ras homolog enriched in brain (RHEB) from inhibition, activating mTORC1 (mTOR complex 1), leading to the phosphorylation of the 4E Binding Protein and initiation of translation and ribosomal S6 kinase (S6K1), leading to ribosome biogenesis and lipid synthesis (Mendoza et al. 2011, Russel et al. 2011).

The production of PIP₂ from PIP₃ is regulated by the lipid phosphatase PTEN, which serves as a negative regulator of PI3K signaling (Chaloub and Baker, 2009). PTEN has been identified as a major tumor suppressor, and loss-of-function of this gene is associated with increased incidence of cancer (Chaloub and Baker, 2009). Indeed resistance of certain breast cancer tumors to therapeutic agents such as trastuzumab is often associated with mutations in the the PI3K pathway (Berns et al. 2007), and the cross-talk between the MAPK/ERK and PI3K mTOR pathway has illustrated the for therapeutic strategies that target both pathways simultaneously (Courtney et al. 2010, Mendoza et al. 2011). An animated presentation that shows some events associated with the PI3-K pathway is available.

Products Suited for Studying PI3K/mTOR signaling

ADP-Glo™ Kinase Assay (Cat.# V9101)

ADP-Glo™ Max Kinase Assay (Cat.# V7001)

AGC Kinase Enzyme Systems

Kinase-Glo^® Luminescent Kinase Assay (Cat.# V6711)

Kinase-Glo^® Plus Luminescent Kinase Assay (Cat.# V3771)

Kinase-Glo^® Max Luminescent Kinase Assay (Cat.# V6071)

LY 294002 (Cat.# V1201)

Signaling Pathway Cross-Talk

No cell signaling pathway works in isolation, and many pathways even share common core signaling molecules. Understanding the interactions or cross-talk among pathways can be important for understanding the mechanisms of action or inefficacy of pharmaceuticals. Because of pathway cross-talk cancer therapies often need to inhibit multiple pathways simultaneously (Rosen et al. 2010; Rozengurt et al. 2010).

Cross-talk among cell signaling pathways can occur at the level of core signaling molecules or pathways can converge on common effectors (Mendoza et al. 2011). Mendoza et al. (2011) describe four types of interactions among pathways: (1) negative feedback loop, a downstream molecule of a pathway inhibits the activity an upstream molecule of the same pathway; (2) cross-inhibition, a core molecule of one pathway inhibits a core member of another pathway; (3) cross-activation, a core member of one pathway upregulates an upstream core member of another pathway; and (4) pathway convergence, two or more signaling pathways act directly on the same protein. To complicate matters, any two pathways can have all four of these types of interactions operating.

Cross-Talk between MAPK/ERK and PI3K/mTOR Pathways

Both the MAPK/ERK and PI3K/mTOR pathways can be activated through receptor tyrosine kinase (RTK) or by G-protein coupled receptors (GPCR) and cross-talk can occur at the receptor level (Mendoza et al. 2011; Courtney et al. 2010).

Negative Feedback: Both pathways are subject to negative feedback from their own downstream core components. For instance in the MAPK/ERK pathway, activated ERK can phosphorylate and inhibit the upstream players SOS, Raf, and MEK (Mendoza et al. 2011). The PI3K-mTOR pathway is subject to negative feedback by S6K phosphorylation of IRS, which downregulates IGF-1 receptor signaling, and RICTOR, which reduces mTORC1 signaling (Courtney et al. 2010; Mendoza et al. 2011).

Cross-inhibition: When the MAPK/ERK pathway is blocked using a small-molecule inhibitor, enhanced EGF-induced AKT activation is often observed (Mendoza et al. 2011). This suggests that the MAPK pathway is cross-inhibiting the PI3K pathway. Conversely cross-inhibition between AKT and Raf has been described upon strong IGF-1 stimulation of AKT/mTOR signaling (Mendoza et al. 2011).

Cross-activation: The MAPK/ERK pathway can activate the PI3K pathway at several points. Ras-GTP can bind directly to PI3K and activate it; activated p90rsk and ERK can phosphorylate TSC2 and promote mTORC1 activity as a consequence (Mendoza et al. 2011).

Pathway convergence: Several of the core kinase components of the MAPK/ERK pathway and the PI3K/mTOR pathway affect the same downstream effectors. For instance ERK phosphorylates the transcription factor FOXO3A as does AKT (Mendoza et al. 2011). Several other effectors including BAD, c-Myc, and GSK3 are also targets in both pathways (Mendoza et al. 2011).

return to top of page

Kinase/ATPase Activity Assays

Luminescent ATP/ADP Detection Assays

ADP-Glo™ Kinase Assay Family

The ADP-Glo™ Kinase Assay (Cat.# V9101) is a luminescent kinase assay that measures ADP formed from a kinase reaction; ADP is converted into ATP, which is converted into light by Ultra-Glo™ Luciferase. The luminescent signal positively correlates with kinase activity. The assay is well suited for measuring the effects chemical compounds have on the activity of a broad range of purified kinases, making it ideal for both primary screening as well as kinase selectivity profiling. The ADP-Glo™ Kinase Assay can be used to monitor the activity of virtually any ADP-generating enzyme (e.g., kinase or ATPase) using up to 1mM ATP. The ADP-Glo™ Max Assay (Cat.# V7001) can be used when higher concentrations (up to 5mM) are required.

The assay is performed in two steps; first, after the kinase reaction, an equal volume of ADP-Glo™ Reagent is added to terminate the kinase reaction and deplete the remaining ATP. In the second step, the Kinase Detection Reagent is added, which simultaneously converts ADP to ATP and allows the newly synthesized ATP to be measured using a coupled luciferase/luciferin reaction (Figure 7.2).

The ADP-Glo™ Kinase Assay has a high dynamic range and produces a strong signal at low ATP to ADP conversion, making it well suited for screening low activity kinases such as growth factor receptor tyrosine kinases. The assay produces minimal false hits and Z´ values of greater than 0.7.

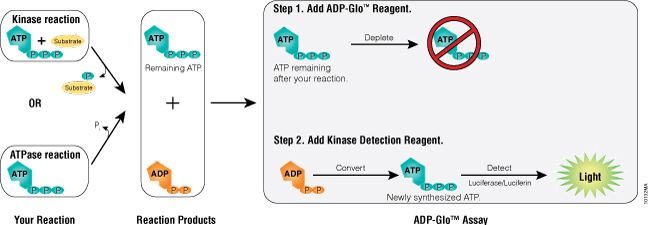

Figure 7.2. The ADP-Glo™ Assay Principle. The assay is composed of two steps. After the kinase or ATPase reaction, the first step is performed by addition of the ADP-Glo™ Reagent that terminates the kinase reaction and depletes any remaining ATP (40-minute incubation time). Addition of a second reagent converts ADP to ATP and generates light from the newly synthesized ATP using a luciferase/luciferin reaction (incubation is 30–60 minutes depending on the ATP concentration used in the kinase reaction). The light generated is proportional to ADP present and, consequently, kinase or ATPase activity. The assay is performed at room temperature and is compatible with automation.

The assay can be performed over a wide range of ATP concentrations (low micromolar to millimolar). This allows detection of small concentrations of ADP in the presence of large amounts of ATP (Figure 7.3), producing very high signal-to-background (SB) ratios (Figure 7.3). The robustness of the ADP-Glo™ Kinase Assay and suitability for high-throughput applications is evidenced by high Z´-factor values reported in previous studies (Tai et al. 2011). The ADP-Glo™ Kinase Assay is as sensitive as radioactivity-based methods and more sensitive than fluorescence-based technologies (Tai et al. 2011; Zegzouti et al. 2009; Vidugiriene et al. 2009). In order to lower the background and further improve the sensitivity of the assay, we increased the purity of our ATP to have less ADP contamination. To assess the importance of ATP purity on ADP-Glo™ assay sensitivity, we compared the signal-to-background ratios generated in an ADP-Glo™ assay using Promega Ultra Pure ATP and ATP from other suppliers. The Promega ATP outperforms ATP from other sources by greatly improving ADP-Glo™ assay sensitivity with SB ratios that are 2–3 times higher than those produced using other commercial preparations (Zegzouti et al. 2011).

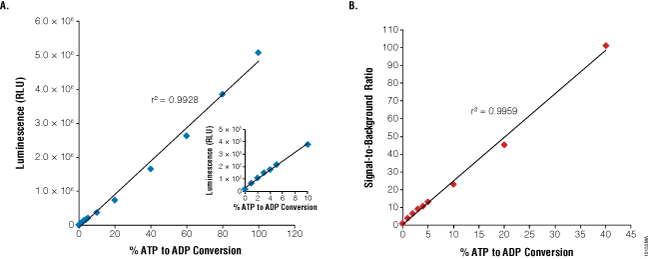

Figure 7.3. Linearity and sensitivity of the ADP-Glo™ Kinase Assay. The 1mM ATP-to-ADP percent conversion curve (standard curve) was prepared in 1X reaction buffer A (40mM Tris [pH 7.5], 20mM MgCl₂, and 0.1mg/ml BSA) without kinase present as described in Technical Manual #TM313. The standards were created by combining the appropriate volumes of ATP and ADP 1mM stock solutions. Five microliters of each ATP + ADP standard was transferred to a white, opaque 384-well plate. The ADP-Glo™ Kinase Assay was performed by adding 5μl of ADP-Glo™ Reagent and 10μl of Kinase Detection Reagent at room temperature to each well. ADP-Glo™ assay reagents were dispensed in 384-well plates using Multidrop^® Combi nL liquid dispenser (Thermo Fisher Scientific). Luminescence values represent the mean of four replicates (RLU = relative light units). Panel A. Linearity of the assay up to 1mM ADP. Panel B. Sensitivity of the assay is shown as signal-to-background ratios (SB) over a wide range of % ATP-to-ADP conversion.

Before You Begin

Materials Required:

• ADP-Glo™ Assay (Cat.# V9101, V9102, V9103) or ADP-Glo™ Max Assay (Cat.# V7001, V7002 ) and appropriate Protocol (Technical Manual #TM313 or TM343).
• solid white multiwell plates (do not use black plates)
• multichannel pipet or automated pipetting station
• plate shaker
• luminometer capable of reading multiwell plates
• appropriate substrate
• ADP-producing enzyme (e.g., ATPase or kinase)

General Instructions for Preparing Detection Buffer

1. Thaw the Detection Buffer at room temperature, and look for any precipitate.


2. If a precipitate is present, incubate the Detection Buffer at 37°C with constant swirling for 15 minutes.



General Instructions for Detection Reagent Preparation

1. Equilibrate the Detection Buffer and the Detection Substrate to room temperature before use.


2. Transfer the entire volume of Detection Buffer into the amber bottle containing the Detection Substrate to reconstitute the lyophilized substrate. This forms the Detection Reagent.


3. Mix by genetly votexing, swirling or inverting the contents to obtain an homogeneous solution. The Detection Substrate should go into solution in less than one minute.


4. The Detection Reagent should be used immediately or dispensed into aliquots and stored at –20°C.



Generating a Standard Curve for the Conversion of ATP to ADP

1. To estimate the amount of ADP produced in the reaction, we recommend creating a standard curve that represents the luminescence corresponding to the conversion of ATP to ADP (the "ATP-to-ADP" conversion curve") based on the ATP concentration used in the kinase or ATPase reaction. These standard curves represent the amounts of ATP and ADP available in a reaction at the specified conversion percentage (Table 7.1). The standard samples used to generate an ATP-to-ADP standard are created by combining the appropriate volumes of ATP and ADP stock solutions. For more information on generating standard curves see Technical Manual TM313 for the ADP-Glo™ Kinase Assay or Technical Manual TM343 for the ADP-Glo™ Max Assay and the Kinase Titration and Determination of SB10 (Part A) below.



   Table 7.1. Percent Conversion of ATP to ADP Represented by the Standard Curve
   	Well 1	Well 2	Well 3	Well 4	Well 5	Well 6	Well 7	Well 8	Well 9	Well 10	Well 11	Well 12
   %ADP	100	80	60	40	20	10	5	4	3	2	1	0
   %ATP	0	20	40	0	80	90	95	96	97	98	99	100

General Overview of ADP-Glo™ Kinase Assay Protocol

1. Perform a kinase reaction using 1X kinase buffer. (See appropriate Technical Manual for details.)


2. Add ADP-Glo™ Reagent to stop the kinase reaction and deplete the unconsumed ATP, leaving only ADP and a very low background of ATP.


3. Incubate at room temperature for 40 minutes.


4. Add Detection Reagent to convert ADP to ATP and introduce luciferase and luciferin to detect ATP.


5. Incubate at room temperature for 30–60 minutes.


6. Measure the luminescence with a plate-reading luminometer or charge-coupled device (CCD) camera.



This is a general protocol. Please see the appropriate Technical Manuals for specific details and notes. To screen for inhibitors or to determine IC₅₀ values of kinase inhibitors using the ADP-Glo™ Kinase Assay Systems, see Technical Manual TM313 for the ADP-Glo™ Kinase Assay or Technical Manual TM343 for the ADP-Glo™ Max Assay.

Sample Protocol for a Kinase Inhibitor (Staurosporine) Dose-Response Curve Using the ADP-Glo™ Assay

A kinase titration will be performed in order to determine the optimal amount of enzyme to use in subsequent inhibitor does-response curve determination. To estimate the amount of ADP produced in a kinase reaction, create an ADP standard curve, named “ATP-to-ADP Conversion Curve”. This curve represents the luminescence (RLU) corresponding to each % conversion of ATP-to-ADP based on the ATP concentration used in the kinase reaction. The standard samples used to generate an ATP-to-ADP conversion curve are created by combining the appropriate volumes of ATP and ADP stock solutions. Kinase Titrations and ATP-to-ADP conversion curves for similar ATP concentrations will be performed in one plate.

The percent ADP produced by each amount of enzyme is calculated using the reference RLUs from the conversion curves. By titrating the kinase, we will determine SB10 value, which corresponds to the amount of the kinase needed to generate a percent conversion reflecting the initial rate of the reaction. Usually we choose 5–10% conversion, as the signal-to-background ratio generated is higher than tenfold.

Using the SB10 amount of the kinase, we will perform a kinase inhibitor (staurosporine) dose response curve to calculate the IC₅₀ and to check for any ATPase contaminating activity that will not be inhibited.

Reaction Buffers Needed Using 5X Reaction Buffer A:

5X Reaction Buffer A: 200mM Tris [pH 7.5], 100mM MgCl₂ and 0.5mg/ml BSA

4X Kinase Buffer: 4X Reaction Buffer A + 200µM DTT + (4X of any cofactors, e.g. MnCl₂)

4X Kinase Buffer D made accordingly by adding 4% DMSO

1X Kinase Buffer made by diluting the 4X Kinase Buffer

1X Kinase Buffer D made by diluting 4X Kinase Buffer D

1X Kinase Buffer (5% DMSO) made by diluting the 4X Kinase Buffer and adding 5% DMSO

Note: All volumes described here are for duplicate samples. If you need to perform more than two replicates per sample, recalculate the volumes accordingly.

All steps are performed at room temperature (22–25°C).

Part A: Kinase Titration and Determination of SB10

Generation of ATP-to-ADP Conversion Curves

1. In a 96-well plate, generate the ATP-ADP series needed by diluting in 1X Kinase Buffer D the samples from a 10X concentrated ATP + ADP ranges as described below.


2. Preparing 10X Conversion Curve Standards: Prepare 10X ADP/ATP stock plates in water as described in the tables below to make 100µl stock solutions of ATP/ADP standards (Table 7.2). You will need 1ml of your 10X ATP and 500µl of the 10X ADP Note: If you are working with only one ATP concentration, make only the corresponding 10X stocks.



   Table 7.2. 10X Conversion Curve Preparative Plate
   	Well 1	Well 2	Well 3	Well 4	Well 5	Well 6	Well 7	Well 8	Well 9	Well 10	Well 11	Well 12
   % Conversion	100	80	60	40	20	10	5	4	3	2	1	0
   ADP (µl)	100	80	60	40	20	10	5	4	3	2	1	0
   ATP (µl)	0	20	40	0	80	90	95	96	97	98	99	100

3. ATP Stock Solution Preparation (starting with a 1mM solution)
   Final conc. desired	Prepare this 10X stock	ATP (µl)	Water (µl)
   1µM	10µM	10	990
   5µM	50µM	50	950
   10µM	100µM	100	900

   ADP Stock Solution Preparation (starting with a 1mM solution)
   Final conc. desired	Prepare this 10X stock	ADP (µl)	Water (µl)
   1µM	10µM	5	495
   5µM	50µM	25	475
   10µM	100µM	50	450

   ATP Stock Solution Preparation (starting with a 10mM solution)
   Final conc. desired	Prepare this 10X stock	ATP (µl)	Water (µl)
   100µM	1.0mM	100	900
   250µM	2.5mM	250	750
   500µM	5mM	500	500

   ADP Stock Solution Preparation (starting with a 10mM solution)
   Final conc. desired	Prepare this 10X stock	ADP (µl)	Water (µl)
   100µM	1.0mM	50	450
   250µM	2.5mM	125	375
   500µM	5mM	250	250

4. After you have prepared your ATP and ADP stock solutions, create a conversion curve 10X by transfering the amounts of each solution as described in Table 7.2.


5. Important Note: Use the remaining 100% ATP from your conversion curve plate to run the kinase reaction in order to have similar background levels.


6. Preparing a 1X ADP/ATP working dilution plate in 1X kinase reaction buffer: Mix 105µl of 4X Kinase Buffer D with 273µl of water. Transfer 27µl/well to a 96-well plate, then transfer 3µl of the 10X ATP/ADP curve to each respective well in the dilution plate. This will give a final volume of 30µl, sufficient for 4 replicates.



Preparation of Kinase Titration Components:

1. Prepare the kinase titrations at the same ATP concentrations as ATP-to-ADP conversion curves.


2. Substrate Mix Preparation: For each kinase, prepare 200µl of 2.5X ATP/Substrate Mix in a 1.5ml tube. Use the 10µM examples below for a guideline. Note: Use ATP from the same 10X ATP that you used for the conversion curve.



   Substrate Mix Preparation (10µM example)
   Component	Amount
   4X Kinase Buffer D	50µl
   100µM ATP (10X)	50µl
   Substrate (1mg/ml)	100µl

   Substrate Mix Preparation: If the substrate is MBP, Casein or Histone H1:
   Component	Amount
   4X Kinase Buffer D	50µl
   100µM ATP (10X)	50µl
   Water	50µl
   Substrate (1mg/ml)	50µl

3. Transfer 14µl of 2.5X ATP/Substrate Mix to odd numbered wells (1,3,5...23) of a 384-well plate in Row X. This is your ATP/Substrate preparative row.


4. Enzyme Dilution Preparation: Add 10µl of 1X Kinase Buffer D to odd numbered wells, starting with well 3 (3, 5, 7...23) of the 384-well plate in Row Y. Do not add buffer to well 1. This is your Kinase Dilution preparative row.


5. Prepare 20µl kinase solution as described in the table below (3µl/reaction/well). This will give 200ng kinase/3µl starting concentration.



   Kinase Solution Preparation
   Component	Volume
   Water	1.67µl
   4X Kinase Buffer D	5µl
   Kinase (100ng/µl)	13.33µl

6. Add 20µl of Kinase Solution to well 1 of the Kinase Dilution prepartive row Y. From there, prepare a 1:1 serial dilution of the kinase as shown in Figure 7.4. Mix well after each dilution by pipetting before transferring 10µl to the next well. Do not continue the serial dilution after well 21.Note: Do not create bubbles while preparing the dilution series.

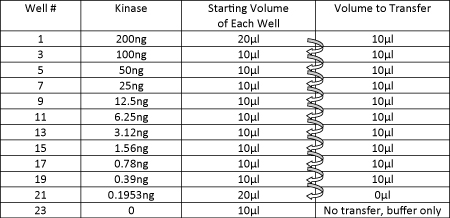

   Figure 7.4. Performing serial 1:1 dilutions of kinase.


7. Kinase Reaction and Conversion Curve Experiment: Transfer 5µl of the diluted ATP-ADP series in replicates from your 1X ADP/ATP working dilution plate into the wells of your 384-well assay plate that are designated for the conversion curve.


8. Transfer 3µl of kinase samples in duplicates from the wells of the kinase titration preparative, Row Y to the wells of the assay plate designated for the kinase reactions.


9. Transfer 2µl of the corresponding 2.5X ATP/Substrate Mix from the wells of the ATP/Substrate preparative Row X to the same assay rows where the kinase dilutions are.


10. Spin the plate. Mix with a plate shaker for 2 minutes. Incubate the reaction at room temperature for 60 minutes or the desired time.


11. ADP detection with ADP-Glo™ Kinase Assay: After the kinase reaction incubation is complete, add 5µl of ADP-Glo™ Reagent to all wells in your assay plate. Mix for 2 minutes and incubate at room temperature for 40 minutes.


12. Add 10µl of kinase detection reagent to all wells in your assay plate. Mix for 2 minutes and then incubate at room temperature for 30–60 minutes.


13. Measure the luminescence (integration time, 0.5 second).


14. Calculate the SB10 value (ng or nM). SB10 is the amount needed to generate a 5–10% ATP to ADP conversion (usually this kinase amount generates a signal-to-background ratio of greater than tenfold).



Part B: Staurosporine Inhibitor Dose Response Curve

1. Preparation of inhibitor titration components: Add 50µl of 1X Kinase Buffer (with 5% DMSO) to wells A2–B12 of a 96-well plate. These are your inhibitor titration preparative rows. Note: Do not add buffer to well A1.


2. Prepare 100µl of 50µM staurosporine solution (will be 5% DMSO) as described in the table below (final 1µl/reaction/well). This will give 10µM staurosporine (1% DMSO) starting concentration in the assay.



   Staurosporine Solution Preparation
   Component	Volume
   Water	70µl
   4X Kinase Buffer	25µl
   Staurosporine in DMSO (1mM)	5µl

3. Add 100µl of staurosporine solution to well A1 of the inhibitor titration preparative rows. Prepare a 1:1 serial dilution of the inhibitor as shown in Figure 7.5. Mix well after each dilution by pipetting before transferring into the next well. Note: Do not create bubbles while preparing the diution series.

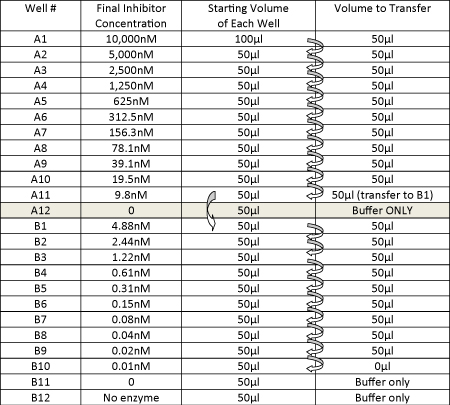

   Figure 7.5. Performing serial 1:1 dilutions of inhibitor.


4. Preparation of Reaction Components, 10µM ATP example: For each kinase prepare 200µl of 2.5X ATP/Substrate Mix as described in the tables below.



   Substrate Mix Preparation
   Component	Amount
   4X Kinase Buffer	50µl
   100µM ATP (10X)	50µl
   Substrate (1mg/ml)	100µl

   Substrate Mix Preparation: If the substrate is MBP, Casein or Histone H1:
   Component	Amount
   4X Kinase Buffer	50µl
   100µM ATP (10X)	50µl
   Water	50µl
   Substrate (1mg/ml)	50µl

5. Transfer 14µl of 2.5X ATP/Substrate Mix to odd numbered wells (1,3,5...23) of a 384-well plate in Row X. This is your ATP/Substrate preparative row.


6. Prepare 140µl of kinase solution (excess amount of 70 reactions at 2µl/reaction/well) as described in the table below. this will give SB10ng of kinase/reaction.



   Kinase Solution Preparation
   Component	Volume
   Water	Yµl = 105µl- X
   4X Kinase Buffer	35µl
   Kinase (100ng/µl)	Xµl = (70 × SB10/100)

7. Add 12µl of the kinase solution to odd numbered wells (1,3,5...21) and 8µl to well 23 of a 384-well plate Row Y, as a kinase preparative row.


8. Kinase Reaction Experiment: Transfer 2µl kinase samples in duplicate from the wells of the kinase preparative row to wells A1 through B22 of a 384-well plate. Note: Add only 2µl of 1X Kinase Buffer to wells B23-B24 for the no-enzyme control.


9. Transfer 1µl inhibitor samples in duplicate from the wells of the inhibitor titration preparative rows to the corresponding wells of the assay rows (Well A1 from the 96-well plate to well A1 and A2 of the 384-well plate, etc.)


10. Mix and incubate at room temperature for 10 minutes.


11. Transfer 2µl of the corresponding 2.5X ATP/Substrate Mix from the wells of the ATP/Substrate preparative row to the same assay rows where the kinase/inhibitor mixes are present.


12. Spin the plate. Mix for 2 minutes and then incubate the kinase reaction at room temperature for 60 minutes, or the desired time.


13. ADP detection with ADP-Glo™ Kinase Assay: After the kinase reaction incubation, add 5µl of ADP-Glo™ Reagent to all wells in your assay plate. Mix for 2 minutes and incubate the reaction at room temperature for 40 minutes.


14. Add 10µl of Kinase Detection Reagent to all the wells in your assay plate. Mix for 2 minutes and incubate the reaction at room temperature for 30–60 minutes.


15. Measure the luminescence (integration time 0.5 second).


16. Calculating Percent Enzyme Activity: First substract the signal of the negative control (no enzyme and no staurosporine) from all the samples signal. Then use the 0% kinase activity (neither compound nor enzyme) and the 100% kinase activity (no compound) to calculate the other percent enzyme activities remaining in the presence of the different dilutions of staurosporine.



The Kinase-Glo^® Universal Kinase Assays

Kinases are enzymes that catalyze the transfer of a phosphate group from ATP to a substrate. The depletion of ATP as a result of kinase activity can be monitored in a highly sensitive manner through the use of the Kinase-Glo^®, Kinase-Glo^® Plus, and Kinase-Glo^® Max Reagents, which use luciferin, oxygen and ATP as substrates in a reaction that produces oxyluciferin and light (Figure 7.6).

Figure 7.6. The luciferase reaction. Mono-oxygenation of luciferin is catalyzed by luciferase in the presence of Mg²⁺, ATP and molecular oxygen and produces one photon of light per turnover.

The Kinase-Glo^® Reagents rely on the properties of a proprietary thermostable luciferase (Ultra-Glo™ Recombinant Luciferase) that is formulated to generate a stable “glow-type” luminescent signal. The reagents are prepared by combining the Kinase-Glo^® or Kinase-Glo^® Plus or Kinase-Glo^® Max Buffer with the lyophilized substrate provided with each system.

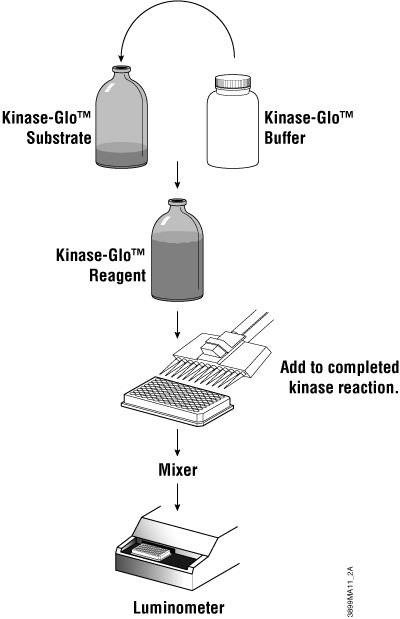

The protocol for both systems involves a single addition of an equal volume of Reagent to a completed kinase reaction that contains ATP, purified kinase and substrate. The plate is mixed and luminescence read. The luminescence is directly proportional to the ATP present in the kinase reaction, and kinase activity is inversely correlated with luminescent output.

The Kinase-Glo^® Luminescent Kinase Assay (Cat.# V6711) and the Kinase-Glo^® Plus Luminescent Kinase Assay (Cat.# V3771) and Kinase-Glo Max Assay (Cat.# V6071) can be used with virtually any kinase and substrate combination. The Kinase-Glo^® Assay is extremely sensitive and is linear from 0 to 10μM ATP. It routinely provides Z´-factor values greater than 0.8 in both 96-well and 384-well formats (Figure 7.7). Z´-factor is a statistical measure of assay dynamic range and variability; a Z´-factor greater than 0.5 is indicative of a robust assay (Zhang et al. 1999).

We have demonstrated the utility of the Kinase-Glo^® Assay for high-throughput screening (Somberg et al. 2003; Goueli et al. 2004a). We tested the Kinase-Glo^® Assay using a commercially available Library of Pharmacologically Active Compounds (LOPAC) to determine if the assay could score true kinase hits in that library. When we screened the LOPAC collection for inhibitors of PKA using the manual protocol, we found six wells in which we could detect kinase inhibition (Somberg et al. 2003). The same six wells also showed detectable kinase inhibition when we tested the Kinase-Glo^® Assay in low-volume 384 and 1536-well formats (Goueli et al. 2004b; Figure 7.8). The Kinase-Glo^® Assay can also be used to determine IC₅₀ values for kinase inhibitors. The IC₅₀ values for one of the six hits from the LOPAC library were determined using the Kinase-Glo^® Assay. The Kinase-Glo^® Assay gave values similar to values reported in the literature, further establishing the utility of the Kinase-Glo^® Assay for high-throughput screening (Goueli et al. 2004b).

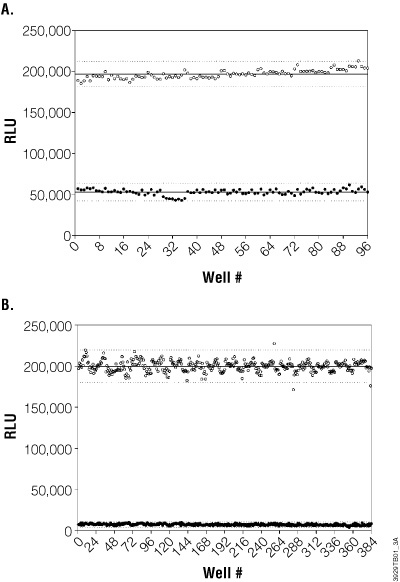

Figure 7.7. Determining Z´-factor for the Kinase-Glo^® Assay. Panel A. The reaction was performed using 0.25 units/well PKA (solid circles) or no PKA (open circles) in 100μl volume. PKA was diluted in 50μl kinase reaction buffer (40mM Tris [pH 7.5], 20mM MgCl₂ and 0.1mg/ml BSA), containing 5μM Kemptide Substrate (Cat.# V5161) and 1μM ATP. The kinase reaction was run for 20 minutes at room temperature. Panel B. The 384-well plate assay was performed using 0.05 units/well (solid circles) or no PKA (open circles) in 20μl volume. Solid lines indicate mean, and dotted lines indicate ± 3 S.D. Z´-factor values were ~0.8 in both formats.

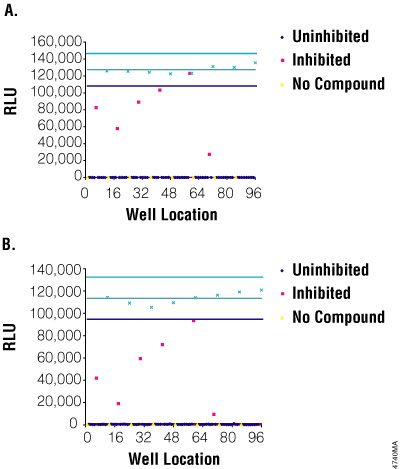

Figure 7.8. Compound screen using Plate 6 of the LOPAC (Sigma-RBI) performed in LV384- (Panel A) and 1536-well (Panel B) formats. Compounds were screened at 10μM. See Goueli et al. 2004a for percent inhibition of compounds that inhibited kinase activity.

The Kinase-Glo^® Plus Assay not only allows users to detect kinase inhibitors, but also to distinguish between ATP competitive and noncompetitive inhibitors. Because the concentration of ATP in cells is fairly high, inhibitors of protein kinases that are not ATP-competitive are more desirable as therapeutic agents than ATP-competitive kinase inhibitors. Because the catalytic domains and active sites of protein kinases have been evolutionarily conserved, inhibitors that are not only ATP non-competitive, but also selective toward the target kinase are most desireable. The Kinase-Glo^® Plus Assay is optimized to work at ATP concentrations that more closely reflect cellular ATP concentrations and is linear up to 100μM ATP.

Materials Required:

• Kinase-Glo^® Assay System (Cat.# V6711, V6712, V6713, V6714) or Kinase-Glo^® Plus Assay System (Cat.# V3771, V3772, V3773, V3774 ) or Kianse-Glo^® Max Assay System (Cat.# V6071, V6072, V6073, V6074) and Protocol (Technical Bulletin #TB372).
• solid white multiwell plates
• multichannel pipet or automated pipetting station
• plate shaker
• luminometer capable of reading multiwell plates
• ATP
• appropriate kinase substrate
• appropriate kinase reaction buffer

Figure 7.9 provides an overview of the Kinase-Glo^® Assay Protocol. The Kinase-Glo^® Plus and Max Assays follow the same format.

Figure 7.9. Schematic diagram of the Kinase-Glo^® Assay protocol.

Fluorescent Kinase Assays

The ProFluor^® Kinase Assays measure PKA (Cat.# V1240, V1241) or PTK (Cat.# V1270, V1271) activity using purified kinase in a multiwell plate format and involve “add, mix, read” steps only. The user performs a standard kinase reaction with the provided bisamide rhodamine 110 substrate. The provided substrate is nonfluorescent. After the kinase reaction is complete, the user adds a Termination Buffer containing a Protease Reagent. This simultaneously stops the reaction and removes amino acids specifically from the nonphosphorylated R110 Substrate, producing highly fluorescent rhodamine 110. Phosphorylated substrate is resistant to protease digestion and remains nonfluorescent. Thus, fluorescence is inversely correlated with kinase activity (Figure 7.10).

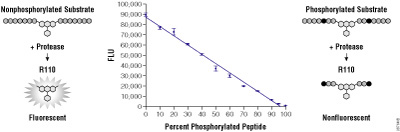

Figure 7.10. Schematic graph demonstrating that the presence of a phosphorylated amino acid (black circles) blocks the removal of amino acids by the protease. The graph shows the average FLU (n = 6) obtained after a 30-minute Protease Reagent digestion using mixtures of nonphosphorylated PKA R110 Substrate and phosphorylated PKA R110 Substrate. (FLU = Fluorescence Light Unit, excitation wavelength 485nm, emission wavelength, 530nm, r² = 0.992). As the concentration of the phosphopeptide increases in the reaction, FLU decreases.

We tested the ability of several tyrosine kinases to phosphorylate the peptide substrate provided in the ProFluor^® Src-Family Kinase Assay using protease cleavage and fluorescence output as an indicator of enzyme activity. The PTK peptide substrate served as an excellent substrate for all of the Src-family PTKs such as Src, Lck, Fyn, Lyn, Jak and Hck and the recombinant epidermal growth factor receptor (EGFR) and insulin receptor (IR). The fluorescence decreases with increasing concentrations for four Src family enzymes tested (Goueli et al. 2004a). The amount of enzyme required to phosphorylate 50% of the peptide (EC₅₀) was quite low (EC₅₀ for Src, Lck, Fyn, Lyn A and Hck were 14.0, 1.38, 4.0, 4.13 and 1.43ng, respectively). As low as a few nanograms of Lck could be detected using this system.

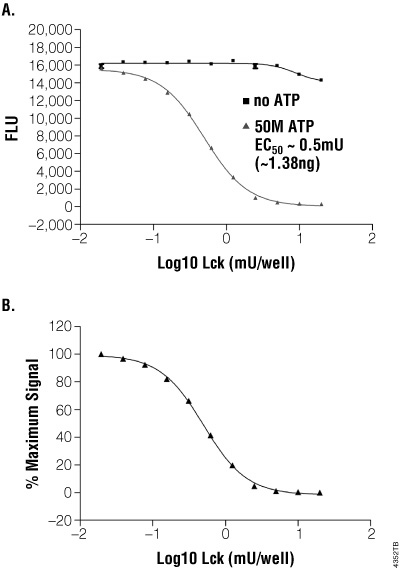

Figure 7.11. Kinase activity is inversely correlated with R110 fluorescence. Results of titration curves performed according to the protocol in Technical Bulletin #TB331 in solid black, flat-bottom 96-well plates. Panels A and B show the results of a Lck titration (Upstate Biotech Cat.# 14-442). Panel A shows the data collected (actual R110 FLU) with or without ATP. Data points are the average of 4 determinations. Curve fitting was performed using GraphPad Prism^® 4.0 sigmoidal dose response (variable slope) software. The r² value is 0.99, EC₅₀ is 0.5mU/well, and the maximum dynamic range in the assay is ~50- to ~60-fold. Normalizing the data allows quick determination of the amount of kinase required for the percent conversion desired (Panel B).

ProFluor^® Kinase Assays

Materials Required:

• ProFluor^® PKA Assay (Cat.# V1240, V1241) or ProFluor^® Src-Family Kinase Assay (Cat.# V1270, V1271) and protocol (Technical Bulletin #TB315 or #TB331, respectively)
• black-walled multiwell plates (e.g., Microfluor 2, black 96-well plate; ThermoElectron Cat.# 7805)
• multichannel pipet or automated pipetting station
• plate shaker (e.g., DYNEX MICRO-SHAKER^® II)
• plate-reading fluorometer with filters capable of reading R110 and AMC fluorescence
• protein kinase

We highly recommend performing a kinase titration to determine the optimal amount of kinase to use for screening and to determine whether or not the enzyme preparation contains components that negatively affect the performance of the assay. Please see Technical Bulletins #TB315 or #TB331 for additional information.

Radioactive Kinase Assays

SAM^{2 ®} Biotin Capture Membrane

The SAM^{2 ®} Biotin Capture Membrane (Cat.# V2861, Cat.# V7861; Figure 7.12) is a proprietary technology that relies on the high-affinity streptavidin:biotin interaction for the capture and detection of biotinylated molecules regardless of their sequence. The unique features of the SAM^{2 ®} Membrane compared to other membranes or substrates (e.g., P81 phosphocellulose or streptavidin-coated plates), are the high density of covalently linked streptavidin per square centimeter and the selective mode of capture. This high-density streptavidin matrix efficiently captures biotinylated molecules or substrates, providing high signal-to-noise ratios even in assays using low enzyme concentrations or crude cell extracts. The SAM^{2 ®} Biotin Capture Membrane offers superior assay performance by providing high binding capacity, low nonspecific binding, sequence-independent capture and the flexibility of multiple format configurations. The SAM^{2 ®} Membrane is available as a sheet containing 96 numbered and partially cut squares. This format is used in the SignaTECT^® Kinase Assay Systems. The SAM^{2 ®} Membrane is also available as a 7.6 × 10.9cm solid sheet, which can be used for high-throughput applications. The membrane can be analyzed by autoradiography, PhosphofImager^® analysis, or scintillation counting.

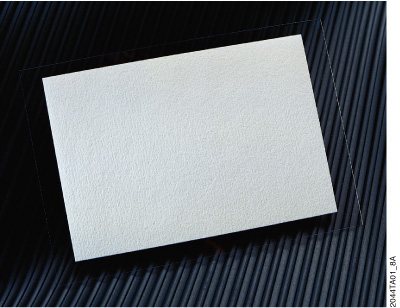

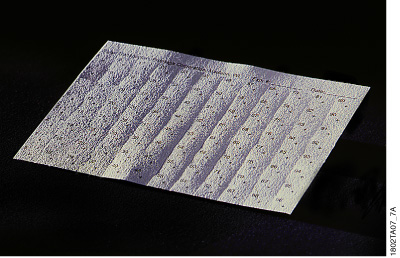

Figure 7.12. SAM^{2 ®} Biotin Capture Membrane shown as a 7.6 × 10.9cm sheet (top) and in a 96-square format (bottom).

SignaTECT^® Protein Kinase Assay Systems

The SignaTECT^® Protein Kinase Assay Systems use biotinylated peptide substrates in conjunction with the streptavidin-coated SAM^{2 ®} Biotin Capture Membrane. The binding of biotin to the streptavidin is rapid and strong, and the association is unaffected by rigorous washing procedures, denaturing agents, wide extremes in pH, temperature and salt concentration. High signal-to-noise ratios are generated even with complex samples, while the high substrate capacity allows optimum reaction kinetics. The systems can be used to measure protein kinase activities using low femtomole levels of purified enzyme or crude cellular extracts. SignaTECT^® Assays are available to measure protein tyrosine kinases (Cat.# V6480), cdc2 kinase (Cat.# V6430), cAMP-dependent protein kinase (Cat.# V7480), protein kinase C (Cat.# V7470), DNA-dependent protein kinase (Cat.# V7870) and calmodulin-dependent protein kinase (Cat.# V8161).

As outlined in Figure 7.13, the assay steps and analysis of results are straightforward and require only common laboratory equipment. Following phosphorylation and binding of the biotinylated substrate to the numbered and partially cut squares of SAM^{2 ®} Biotin Capture Membrane, unincorporated [γ-³²P]ATP is removed by a simple washing procedure. This procedure also removes nonbiotinylated proteins that have been phosphorylated by other kinases in the sample. The bound, labeled substrate is then quantitated by scintillation counting or PhosphorImager^® analysis. Typical results generated using the SignaTECT^® Assays are presented in Figure 7.14.

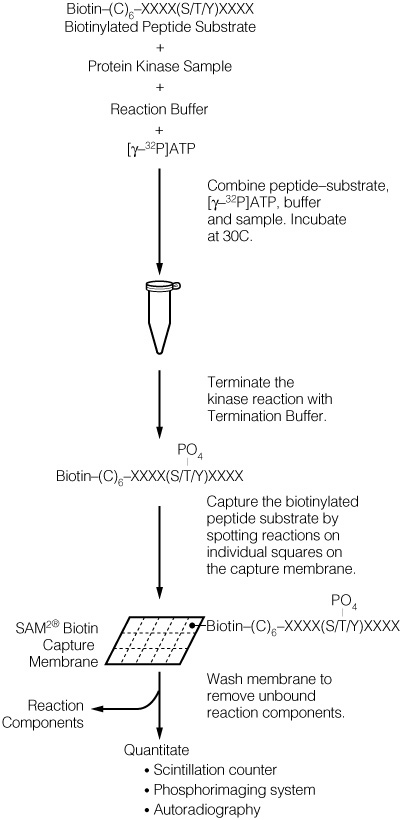

Figure 7.13. The SignaTECT^® Protein Kinase Assay protocol.

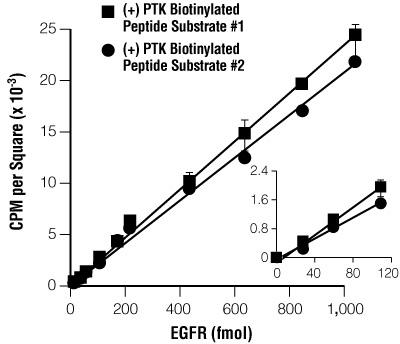

Figure 7.14. Linear detection of EGFR kinase activity with the SignaTECT^® PTK Assay System. EGFR (Cat.# V5551) activity was measured in the presence of PTK Biotinylated Peptide Substrate 1 or PTK Biotinylated Peptide Substrate 2, provided with the SignaTECT^® PTK System (Cat.# V6480). Inset: enlargement of the data using 120fmol of EGFR.

Other Kinase Assay Formats (non-radioactive)

The PepTag^® Protein Kinase Assays are fast and quantitative nonradioactive alternatives to [γ-³²P]ATP-based assays for measuring protein kinase C (Cat.# V5330) and cAMP-dependent protein kinase (Cat.# V5340) activity. The assays use fluorescently-tagged peptide substrates with a net positive charge. Phosphorylation changes the charge of the peptide to a net negative, which influences the migration of the peptide in an agarose gel. This is the basis for detecting changes in phosphorylation via a rapid, 15-minute agarose gel separation (Figure 7.15).

General PepTag^® Assay Protocol

Materials Required:

• PepTag^® Non-Radioactive PKC Assay (Cat.# V5330) or PepTag^® Non-Radioactive cAMP-Dependent Protein Kinase Assay (Cat.# V5340) and protocol (#TB132)
• PKA or PKC dilution buffer
• horizontal agarose gel apparatus
• glycerol, 80%
• Tris-HCl, 50mM (pH 8.0)
• agarose, 0.8% in 50mM Tris-HCl (pH 8.0)
• probe sonicator

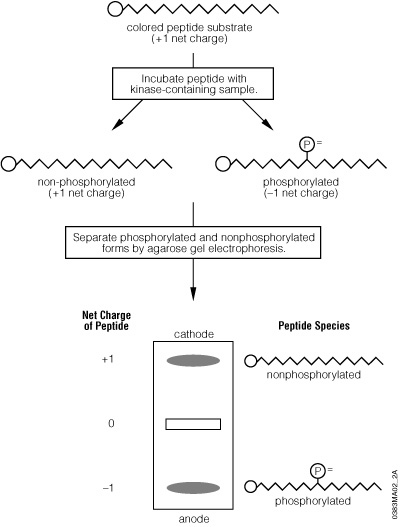

Figure 7.15. Schematic diagram of the PepTag^® Non-Radioactive Protein Kinase Assay procedure.

return to top of page

Kinase Enzyme Systems

The human kinome is composed of more than 500 protein kinase genes that can be grouped together based on sequence homology. The group abbreviations are as follows: AGC: Containing PKA, PKG, PKC families; CAMK: Calcium/calmodulin-dependent protein kinase; CK1: Casein kinase 1; CMGC: Containing CDK, MAPK, GSK3, CLK families; STE: Homologs of yeast Sterile 7, Sterile 11, Sterile 20 kinases; TK: Tyrosine kinase; TKL: Tyrosine kinase-like. Click on each individual group for more detailed information on the kinase members of that group. Promega offers Kinase Enzyme Systems for a number of protein kinases which include: enzyme, preferred substrate, buffer and other components to have you up and running in no time. The Kinase Enzyme Systems are optimized for use with our ADP-Glo™ Kinase Assay and can be ordered together. The ADP-Glo™ Kinase Assay (Cat.# V9101) is a luminescent kinase assay that measures ADP formed from a kinase reaction; ADP is converted into ATP, which is converted into light by Ultra-Glo™ Luciferase. The luminescent signal positively correlates with kinase activity. The assay is well suited for measuring the effects chemical compounds have on the activity of a broad range of purified kinases, making it ideal for both primary screening as well as kinase selectivity profiling.

Receptor Tyrosine Kinase Enzyme Systems

Nonreeceptor Tyrosine Kinase Enzyme Systems

AGC Kinase Enzyme Systems

CAMK Kinase Enzyme Systems

CMGC Kinase Enzyme Systems

STE Kinase Enzyme Systems

Miscellaneous Enzyme Systems

return to top of page

Phosphorylation-Specific Antibodies

The Anti-ACTIVE^® phosphorylation-specific antibodies were developed to provide an accurate measure of enzyme activation. These antibodies specifically recognize the active, phosphorylated form of a given kinase. The Anti-ACTIVE^® Antibodies are raised against phosphorylated peptide sequences present in the activating loop of a number of protein kinases. Whether used in Western analysis, immunocytochemistry or immunohistochemical staining, the Anti-ACTIVE^® MAPK, JNK, p38 and CaM KII Antibodies will recognize only the active form of the enzyme.

Phosphorylation-Specific Antibodies in MAPK Signaling Pathways

Anti-ACTIVE^® MAPK, pAb, Rabbit, (pTEpY)

This antibody is an affinity purified polyclonal antibody that specifically recognizes the dually phosphorylated, active form of MAPK. The antibody is raised against a dually phosphorylated peptide sequence representing the catalytic core of the active ERK enzyme and recognizes the active forms of ERK1, ERK2 and ERK7.

Anti-ACTIVE^® JNK pAb, Rabbit, (pTPpY)

Anti-ACTIVE^® JNK pAb is an affinity purified polyclonal antibody that recognizes the dually phosphorylated, active form of cJun N-terminal protein Kinase (JNK). Anti-ACTIVE^® JNK pAb is raised against a dually phosphorylated peptide sequence representing the catalytic core of the active JNK enzyme. The antibody recognizes the active forms of JNK1, JNK2, and JNK3 isoforms.

Anti-ACTIVE^® p38 pAb, Rabbit, (pTGpY)

Anti-ACTIVE^® p38 Ab, Rabbit, is an affinity purified polyclonal antibody that recognizes the active form of p38 kinase. The Anti-ACTIVE^® p38 pAb is raised against the dually phosphorylated peptide sequence representing the catalytic core of the active p38 enzyme. The Anti-ACTIVE^® p38 pAb recognizes the active forms of p38α, γ, and δ isoforms.

Western Blot Analysis with Anti-ACTIVE^® MAPK, JNK and p38 pAbs

Materials Required:

• Anti-ACTIVE^® MAPK (Cat.# V8031), JNK (Cat.# V7931), or p38 (Cat.# V1211) pAb
• Anti-ACTIVE^® Qualified Donkey Anti-Rabbit IgG (H+L), HRP (Cat.# V7951) Secondary Antibodies
• protein sample transfered to nitrocellulose or PVDF membrane
• bovine serum albumin, 1%
• TBS buffer
• TBST or PVDF buffer
• shaking platform

See Figure 7.16 for a sample Western blot protocol.

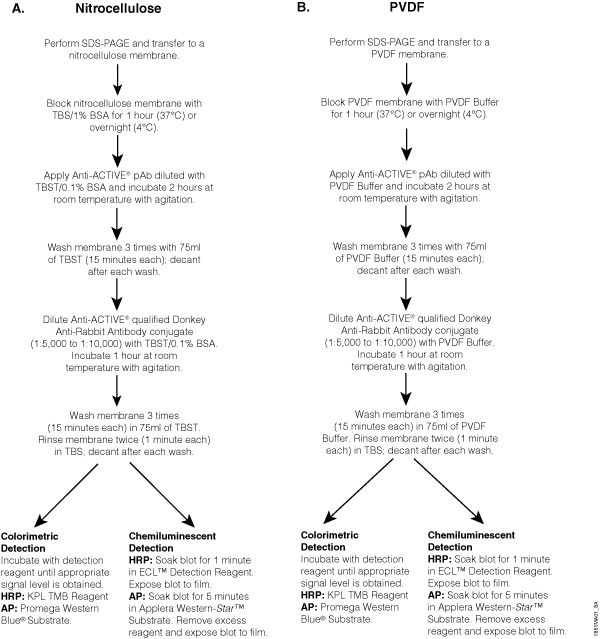

Figure 7.16. This schematic diagram illustrates the use of nitrocellulose and PVDF membranes in Western blot analysis with Anti-ACTIVE^® pAbs. Protocols for use with nitrocellulose (Panel A) and PVDF (Panel B) membranes. The recommended dilutions of the Anti-ACTIVE^® pAbs are 1:5,000 for Anti-ACTIVE^® MAPK pAb, 1:2,000 for Anti-ACTIVE^® p38 pAb, 1:5,000 for Anti-ACTIVE^® JNK pAb and 1:5,000 to 1:10,000 for the Anti-ACTIVE^® Donkey Anti-Rabbit IgG (H+L) secondary antibodies (HRP-conjugated). KPL is an abbreviation for Kirkegaard and Perry Laboratories. See Technical Bulletin #TB262 for more information about this protocol. You may need to determime the optimal dilutions of primary and secondary antibodies for your system. If you use secondary antibodies other than those available from Promega, you may need to perform additional experiments to determine optimal conditions.

Immunocytochemistry with Anti-ACTIVE^® MAPK, JNK and p38 pAbs

The following method is for preparing and immunostaining PC12 cells stimulated by either nerve growth factor to activate MAP kianses or soribitol to activate JNK and p38 kinases. For additional information see Technical Bulletin #TB262

Materials Required:

• Anti-ACTIVE^® Qualified Donkey Anti-Rabbit IgG (H+L), HRP (Cat.# V7951) Secondary Antibodies
• LabTek^® 4-chambered slides (Fisher Cat.# 12-565-21)
• rat-tail collagen (Collaborative BioScience Products)
• RPMI 1640 with 25mM HEPES, 300mg/l l-glutamine, 10% horse serum, 5% fetal bovine serum and 0.5mM EGTA
• NGF (Cat.# G5141) or sorbitol
• PBS
• 10% paraformaldehyde
• methanol, –20°C
• blocking buffer
• donkey anti-rabbit Cy^®3 conjugate (Jackson ImmunoResearch Cat.# 741-165-152)

Preparation and Activation of PC12 Cells

1. Coat 4-chambered slides with rat tail collagen (6μg/cm² in sterile PBS) for one hour.


2. Grow PC12 cells in chambers at 37° in 5% CO₂ in medium containing RPMI 1640 with 25mM HEPES, 300mg/L l-glutamine, 10% horse serum, 5% fetal bovine serum and 0.5mM EGTA. The medium should be changed every other day until the cells reach 80% confluence.


3. Activate the cells in 2 chambers as described below. Use the cells in the remaining 2 chambers as untreated controls.

   NGF: The day before immunocytochemistry, add fresh medium with serum. The next day add 200ng/ml NGF in RPMI. Incubate for 5 minutes at 37°C.

   Sorbitol: The day before immunocytochemistry, add fresh medium without serum. The next day add sorbitol to a final concentration of 1M. Incubate for 30 minutes at 37°C.


4. Proceed with staining as outlined in Figure 7.17.

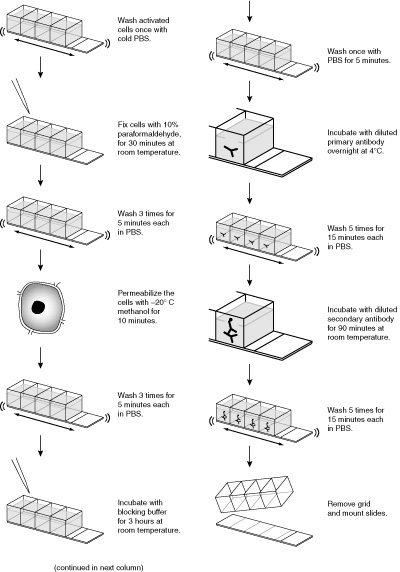

Figure 7.17. Immunostaining of activated PC12 cells. This protocol is for immunostaining of activated PC12 cells and may need to be optimized for your particular experimental system. Incubation times and antibody dilutions will need to be empirically determined for optimal results.

Phosphorylation-Specfic CaM KII Antibody

This antibody recognizes calcium/calmodulin-dependent protein kinase CaM KII that is phosphorylated on threonine 286. The Anti-ACTIVE^® CaM KII pAb (Cat.# V1111) was raised against the phosphothreonine-containing peptide derived from this region.

return to top of page

Kinase Inhibitors

MEK Inhibitor U0126

MEK Inhibitor U0126 (Cat.# V1121) inhibits the activity of MAP Kinase Kinase (MEK 1/2) and thus prevents the activation of MAPK. U0126 inhibits MEK 1 with an IC₅₀ of 0.5µM in vitro (Favata et al. 1998). U0126 inhibits phosphorylation activated MEK 1 and MEK 2 as well as constitutively active MEK 1 and MEK 2 mutants (Favata et al. 1998; Goueli et al. 1998). U0126 is noncompetitive with respect to the MEK substrates ATP and ERK (Favata et al. 1998; Tolwinski et al. 1999).

PD 98059

PD 98059 (Cat.# V1191) inhibits MEK activation (Alessi et al. 1995; Dudley et al. 1995; Favata et al. 1998). PD 98059 inhibits MEK 1 but is an inefficient inhibitor of MEK 2. (Alessi et al. 1995; Dudley et al. 1995). It inhibits activation of MEK 1 by Raf with an IC₅₀ of 5μM and of the active MEK 1 mutant with an IC₅₀ of 10µM (Alessi et al. 1995; Dudley et al. 1995).

SB 203580

SB 203580 (Cat.# V1161) is a specific, cell-permeant inhibitor of the stress and inflammatory cytokine-activate MAP kinase homologues p38α, β and β2. It acts as a competitive inhibitor of ATP binding to the kinase. Reported IC₅₀ values range from 21nM to 1µM. SB 203580 has no significant effect on the activities of ERKs, JNKs, p38γ or p38δ.

Promega Publications

CN001 Frequently asked questions: Kinase inhibitors and activators

Citations

PI3 Kinase Inhibitor LY 294002

LY 294002 (Cat.# V1201) is a potent and specific cell-permeant inhibitor of phosphatidylinositol 3-kinases (PI3-K) with an IC₅₀ value in the 1–50μM range. LY 294002 competitively inhibits ATP binding to the catalytic subunit of PI3-Ks and does not inhibit PI4-Kinase, DAG-kinase, PKC, PKA, MAPK, S6 kinase, EGFR or c-src tyrosine kinases and rabbit kidney ATPase (Rameh and Cantley, 1999; Fruman et al. 1998). LY 294002 has improved stability and specificity compared to Wortmannin, which is an irreversible inhibitor that covalently interacts with PI3-Ks.

cAMP-Dependent Protein Kinase (PKA) Peptide Inhibitor

The cAMP-Dependent Protein Kinase Inhibitor (Cat.# V5681), also known as PKI, TTYADFIASGRRNAIHD, inhibits phosphorylation of target proteins by binding to the protein-substrate site of the catalytic subunit of PKA. It corresponds to the region 5–24 of the naturally occurring PKI.

InCELLect^® AKAP St-Ht31 Inhibitor Peptide

The InCELLect^® AKAP St-Ht31 Inhibitor Peptide (Cat.# V8211) and the InCELLect^® Control Peptide (Cat.# V8221) can be used for in vivo studies of PKA activation. The Inhibitor Peptide is a stearated (St) form of the peptide Ht31 derived from the human thyroid AKAP (A-kinase anchoring protein). The presence of the hydrophobic stearated moiety enhances the cellular uptake of the peptides through the lipophilic microenvironment of the plasma membrane.

Myristoylated Protein Kinase C Peptide Inhibitor

Myristoylated Protein Kinase C Peptide Inhibitor (Cat.# V5691) specifically inhibits calcium- and phospholipid-dependent protein kinase C. It is based on the pseudosubstrate region of PKC-α and PKC-β (Eicholtz, 1993).

Olomoucine cdc2 Protein Kinase Inhibitor

Olomoucine is a chemically synthesized inhibitor that is specific for p34^cdc2 and related protein kinases. Its molecular weight is 298, and its molecular formula is C1₅H₁₈N₆O.

return to top of page

Phosphatase Assays

Protein phosphorylation plays a key role in signal transduction, and genes for protein kinases and phosphatases represent a large portion of the human genome (Goueli et al. 2004b; Cohen, 2001). They are the opposing partners to the kinases in the cell, catalyzing the dephosphorylation of molecules involved in cellular pathways. Protein phosphatases can be divided into three general categories: a) protein tyrosine phosphatases, which remove phosphate from phosphotyrosine-containing proteins, b) protein serine/threonine phosphatases, which remove phosphate from phosphoserine- or phosphothreonine-containing proteins, and c) dual-specificity phosphatases, which can remove phosphate from phosphotyrosine, phosphothreonine, and phosphoserine (Hunter, 1995).

Fluorescent Phosphatase Assays

We have developed the ProFluor^® Phosphatase Assays to overcome safety issues associated with radioactive assays while maintaining sensitivity and specificity. The ProFluor^® Phosphatase Assays use bisamide R110-linked phosphopeptides that serve as substrates for PTPases. Phosphorylation of the peptide substrate renders it resistant to cleavage by the Protease Reagent that is included with these assay systems, reducing the fluorescence generated. However, when the phosphoryl moiety is removed by a phosphatase, the peptides become cleavable by the protease, releasing the highly fluorescent, free R110 molecule (Figure 7.18).

Figure 7.18. Schematic and graph demonstrating that Rhodamine 110 is essentially nonfluorescent in the bisamide form and that the presence of a phosphorylated amino acid (dark circle) blocks the removal of amino acids by the protease. The graph shows the average FLU obtained after a 30-minute protease reagent digestion using mixtures of nonphosphorylated R1110 PKA Substrate and phosphorylated R110 PKA Substrate as indicated (n = 6).

The ProFluor^® PPase Assays offer the simplicity, sensitivity and specificity required for screening chemical libraries for novel inhibitors of protein phosphatases. These assays are robust with Z´ factor values routinely greater than 0.8 (Figure 7.19; Goueli et al. 2004b)

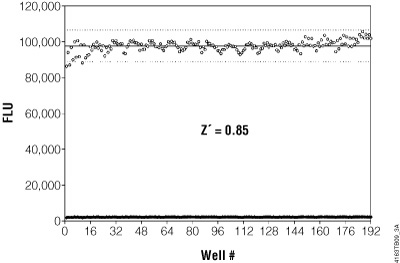

Figure 7.19. Z´ factor values obtained in 384-well plates for the ProFluor^® S/T PPase Assay. The assay was performed manually according to the protocol provided in Technical Bulletin #TB324 using solid black, flat-bottom plates with phosphatase (open circles) and without phosphatase (solid circles). Solid lines indicate the mean, and the dotted lines indicate ±S.D. 6.25milliunits/well PP1 (Calbiochem Cat.# 539493) was used. Z´ factor was 0.85).

Z´ factor is a statistical description of the dynamic range and variability of an assay. Z´ factor values >0.5 are indicative of a robust assay (Zhang et al. 1999). These fluorescent assays can be performed in single tubes, 96-well plates or 384-well plates, giving the user flexibility in format. The signal-to-noise ratio is very high, and the generated signal is stable for hours.

General Protocol for the ProFluor^® Phosphatase Assays

Materials Required:

• ProFluor^® Ser/Thr Phosphatase Assay (Cat.# V1260, V1261) or ProFluor^® Tyrosine Phosphatase Assay (Cat.# V1280, V1281) and protocol (Technical Bulletin #TB324 or TB334, respectively)
• opaque-walled multiwell plates
• multichannel pipet or automated pipetting station
• plate shaker (DYNEX MICRO-SHAKER^® or equivalent)
• plate-reading fluorometer with filters for reading R110 and AMC fluorescence
• protein tyrosine phosphatase or S/T protein phosphatase
• okadaic acid (for PP1 and PP2A)
• calmodulin (for PP2B)

1. Dilute the phosphatase in Reaction Buffer and add to wells.


2. Dilute the PTPase R110 Substrate and the Control AMC Substrate in Reaction Buffer and add to wells.


3. Mix the contents of the plate for 15 seconds and incubate at room temperature (10 minutes for PP1 and PP2A; 30 minutes for PP2B; 60 minutes for tyrosine PPase).


4. Add Protease Solution.


5. Mix the contents of the plate briefly and incubate at room temperature (90 minutes for PP2A, PP2B or PP1; 30 minutes for tyrosine PPase).


6. Add Stabilizer Solution.


7. Mix the contents of the plate and read fluorescence.



Colorimetric Phosphatase Assays

Both the Tyrosine Phosphatase (Cat.# V2471) and the Serine/Threonine Phosphatase (Cat.# V2460) Assay Systems detect the release of phosphate from specific peptide substrates by measuring the appearance of a phosphate complex of molybdate:malachite green. For assays of crude extracts, endogenous phosphate and other inhibitory molecules are first removed by a simple 20-minute procedure using Spin Columns that are supplied with each system. This step is unnecessary for assays using pure or partially purified enzyme preparations. Each system includes ready-to-use, specific substrates: the Tyrosine Phosphatase System provides two phosphotyrosine-containing peptides; the Serine/Threonine Phosphatase Assay System provides a phosphothreonine-containing peptide. Other phosphopeptides or phosphoproteins can be used as substrates to increase specificity or to use natural substrates. The simple assay procedure is outlined in Figure 7.20.

Materials Required:

• Serine/Threonine Phosphatase Assay System (Cat.# V2460) or Tyrosine Phosphatase Assay System (Cat.# V2471) and protocol (Technical Bulletin # TB218 or #TB212, respectively)
• 50ml disposable conical centrifuge tubes (e.g., Corning Cat.# 25330-50)
• appropriate storage buffer ( see TB212 or TB218)
• Sephadex^® G-25 storage buffer (for storing column)

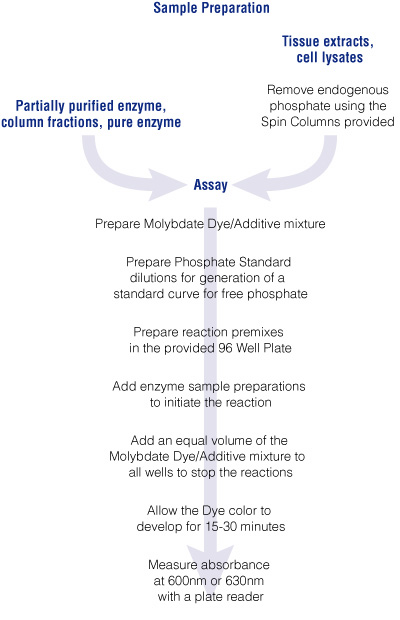

Figure 7.20. Steps required for measuring phosphatase activity using the Serine/Threonine or the Tyrosine Phosphatase Assay System. These systems can be used to measure phosphatase activity from partially purified enzyme preparations and tissue extracts or cell lysates.

return to top of page

References

1. Alessi, A. et al. (1995) PD 098059 is a specific inhibitor of the activation of mitogen-activated protein kinase kinase in vitro and in vivo J. Biol. Chem. 270, 27489–94.
2. Aoki, M. et al. (2001) A role of the kinase mTOR in cellular transformation induced by the oncoproteins P3K and Akt. Proc. Natl. Acad. Sci. USA 98, 136–41.
3. Berns, K. et al. (2007) A functional genetic approach identifies the PI3K pathway as a major determinant of trastuzumab resistance in breast cancer Cancer Cell. 12, 395–402.
4. Chalhoub, N. and Baker, S.J. (2009) PTEN and the PI3-kinase pathway in cancer Annu. Rev. Pathol.. 4, 127–50.
5. Cohen, P. (2001) The role of protein phosphorylation in human health and disease: Delivered on June 30, 2001 at the FEBS meeting in Lisbon. Eur. J. Biochem 268, 5001–10.
6. Cohen, P. (2002) Protein kinases—the major drug targets of the 21st century? Nat. Rev. Drug Disc. 1, 309–15.
7. Cooray, S. (2004) The pivotal role of phosphatidylinositol-3-kinase-Akt signal transduction in virus survival J. Gen. Virol. 85, 1065–76.
8. Courtney, K.D., Corcoran, R.B and Engelman, J.A. (2010) The PI3K pathway as drug target in human cancer J. Clin. Oncol. . 28, 1075–83.
9. De Meyts, P. et al. (1995) Role of the time factor in signaling specificity: Application to mitogenic and metabolic signaling by the insulin and insulin-like growth factor-1 receptor tyrosine kinases. Metabolism 44, 2–11.
10. Denton, R.M. and Tavare, J.M. (1995) Does mitogen-activated protein kinase have a role in insulin action? The cases for and against. Eur. J. Biochem. 227, 597–611.
11. Doza, Y.N. et al. (1995) Activation of the MAP kinase homologue RK requires the phosphorylation of Thr-180 and Tyr-182 and both residues are phosphorylated in chemically streaked KB cells. FEBS Letters 364, 223–8.
12. Dudley, D.T. et al. (1995) A synthetic inhibitor of the mitogen-activated protein kinase cascade. Proc. Natl. Acad. Sci. USA 92, 7686–9.
13. Eicholtz, T. et al. (1993) A myristoylated psuedosubstrate peptide, a novel protein kinase C inhibitor. J. Biol. Chem. 268, 1982–6.
14. Ellinger-Ziegelbauer, H. et al. (1997) Direct activation of the stress-activated protein kinase (SAPK) and extracellular signal-regulated protein kinase (ERK) pathways by an inducible mitogen-activated protein kinase/ERK kinase kinase (MEKK) derivative. J. Biol. Chem. 272, 2668–74.
15. Favata, M. et al. (1998) Identification of a novel inhibitor of mitogen-activated protein kinase kinase. J. Biol. Chem. 273, 18623–32.
16. French, K.J. et al. (2003) Discovery and evaluation of inhibitors of human sphingosine kinase. Can. Res. 63, 5962–9.
17. Fruman, D.A. et al. (1998) Phosphoinositide kinases. Annu. Rev. Bioch. 67, 481–507.
18. Goueli, S.A. et al. (2004b) Assay protein tyrosine kinase and protein tyrosine phosphatase activity in a homogeneous, non-radioactive high-throughput format. Cell Notes 8, 15–20.
19. Goueli, S.A. et al. (1998) U0126: A novel, selective and potent inhibitor of MAP kinase kinase (MEK). Promega Notes 69, 6–8.
20. Goueli, S.A. et al. (2004a) High-throughput kinase screening using a universal, luminescent kinase assay. Cell Notes 10, 20–23.
21. Grimsby, J. et al. (2003) Allosteric activators of glucokinase: Potential role in diabetes therapy. Science 301, 370–3.
22. Hunter, T. (1995) Protein kinases and phosphatases: The yin and yang of protein phosphorylation and signaling. Cell 80, 225–36.
23. Kang, S. et al. (2005) Phosphatidylinositol 3-kinase mutations identified in human cancer are oncogenic. Proc. Natl. Acad. Sci. USA 102, 802–7.
24. Keyse, S.M. (1995) An emerging family of dual-specificity MAP kinase phosphatases Biochim. Biophs. Acta. 1265, 152–60.
25. Kim, E.K. and Choi, E-J. (2010) Pathological roles of MAPK signaling pathways in human diseases Biochim. Biophys. Acta.. 1802, 396–405.
26. Kyriakis, J.M. and Avruch, J. (2001) Mammalian mitogen-activated protein kinase signal transduction pathways activated by stress and inflammation Physiological Reviews 81, 808–67.
27. Manning, G. et al. (2002) Evolution of protein kinase signaling from yeast to man. Trends in Biochem. Sci. 27, 514–20.
28. Mendoza, M.C., Er, E. and Blenis, J. (2011) The Ras-ERK and PI3K-mTOR pathways: cross-talk and compensation Trends Biochem. Sci. 36, 320–28.
29. Murphy, L.O. and Blenis, J. (2006) MAPK signal specificity: The right place at the right time Trends Biochem. Sci. 31, 268–75. 81, 808–67.
30. Murray, A.W. (1998) MAP kinases in meiosis. Cell 92, 157–9.
31. Neel, B.G. and Tonks, N.K. (1997) Protein tyrosine phosphatases in signal transduction. Curr. Opin. Cell Biol. 9, 193–204.
32. Okamura, K. et al. (2005) Cellular transformation by the MSP58 oncogene is inhibited by its physical interaction with the PTEN tumor suppressor. Proc. Natl. Acad. Sci. USA 102, 2703–6.
33. Okkenhaug, K. and Vanhaesebroeck, B. (2003) PI3-K in lymphocyte development, differentiation and activation. Nat. Rev. Immunol. 3, 317–30.
34. Payne, D.M. et al. (1991) Identification of the regulatory phosphorylation sites in pp42/mitogen-activated protein kinase (MAP kinase). EMBO J. 10, 885–92.
35. Pearson, M.A. and Fabbro, D. (2004) Targeting protein kinases in cancer therapy: a success? Expert. Rev. Anticancer Ther. 4, 1113–24.
36. Pimienta, G. and Pascual, J. (2007) Canonical and alternative MAPK signaling Cell Cycle. 6, 2628–32.
37. Rameh, L.E. and Cantley, L.C. (1999) The role of phosphoinositide 3-kinase lipid products in cell function. J.Biol.Chem. 274, 8347–50.
38. Roberts, P.J. and Der, C.J. (2007) Targeting the Raf-MEK-ERK mitogen-activated protein kinase cascade for the treatement of cancer Oncogene. 26, 3291–10.
39. Rosen, L., Ashurst, H.L. and Chap, L. (2010) Targeting signal transduction pathways in metastatic breast cancer: A comprehensive review The Oncologist. 15, 216–35.
40. Rozengurt, E., Sinnett-Smith, J. and Kisfalvi, K. (2010) Crosstalk between Insulin/Insulin-like growth factor-1 receptors and G protein coupled receptor signaling systems: A novel target for the antidiabetic drug metformin in pancreatic cancer Clin. Can. Res.. 16, 2505–2511.
41. Russell, R.C., Fang, C. and Guan, K-L. (2011) An emerging role for TOR signaling in mammalian tissue and stem cell physiology Development. 138, 3343–56.
42. Shaeffer, H.J. and Weber, M.J. (1999) Mitogen-activated protein kinases: Specific messages from ubiquitous messengers. Mol. Cell Biol. 19, 2435–44.
43. Shears, S.B. (2004) How versatile are inositol phosphate kinases? Biochem. J. 377, 265–80.
44. Sliva, D. (2004) Signaling pathways responsible for cancer cell invasion as targets for cancer therapy. Curr. Can. Drug Targets 4, 327–36.
45. Somberg, R. et al. (2003) Kinase-Glo^® Luminescent Kinase Assay: Detect virtually any kinase. Cell Notes 5, 5–8.
46. Tai, W. et al. (2011) A homogeneous and nonisotopic assay for phosphatidylinositol 4-kinases Anal. Biochem.. 417, 97–102.
47. Tolwinski, N.S. et al. (1999) Nuclear localization of mitogen-activated protein kinase kinase (MKK 1) is promoted by serum stimulation and G2-M progression. J. Biol. Chem. 274, 6168–74.
48. van der Geer, P. et al. (1994) Receptor protein tyrosine kinases and their signal transduction pathways. Ann. Rev. Cell Biol. 10, 251–5.
49. Vanhaesebroeck, B. et al. (2001) Synthesis and function of 3-phosphorylated inositol lipids. Annu. Rev. Biochem. 70, 535–602.
50. Vidugiriene, J. et al. (2009) Evaluating the utility of a bioluminescent ADP detecting assay for lipid kinases Assay Drug Dev. Technol. 7, 585–97
51. Zegzouti, H. et al. (2011) Screening and Profiling Kinase Inhibitors with a Luminescent ADP Detection Platform Promega PubHub [internet: accessed 9/12/2011]
52. Zegzouti, H. et al. (2009) ADP-Glo: A bioluminescent and homogeneous ADP monitoring assay for kinases. Assay Drug Dev. Technol. 7, 560–72.
53. Zhang, J. et al. (1995) Activity of the MAP kinase ERK 2 is controlled by a flexible surface loop. Structure 3, 299–307.
54. Zhang, J.H. et al. (1999) A simple statistical parameter for use in evaluation and validation of high-throughput screening assays. J. Biomol. Screening 4, 67–73.

return to top of page
