pGEM® DNA Markers
Fifteen DNA Fragments of 36–2,645bp, Combined From Three Separate Digests of pGEM®-3 Vector
- Load 1μl/lane
- Supplied at a concentration of 1µg/μl
- Supplied with 6X Blue/Orange Loading Dye
- Now ships at ambient temperature
- Intended for Laboratory Use (GPR) in the United States. Outside of the United States, this product is intended for research use only unless otherwise stated
Catalog Number:
Size
Catalog Number: G1741
Conventional DNA Digest Markers are created by digesting DNA (i.e., λ DNA, ΦX174 replicative form DNA or plasmids) to completion with one or more restriction enzymes. The enzymes are heat-inactivated, and the DNA fragments are either phenol-extracted, then ethanol-precipitated or just ethanol-precipitated. The precipitated fragments are resuspended in storage buffer. These markers are not intended for quantitative analysis.
The pGEM® DNA Markers have 15 phenol-extracted, ethanol-precipitated DNA fragments ranging in size from 36bp to 2,645bp. These unique markers are generated from separate digests of pGEM®-3 Vector DNA with HinfI, RsaI and AvaII later combined to form the markers.
Storage Buffer: 10mM Tris-HCl (pH 7.8), 1mM EDTA.
Now shipping at ambient temperature. Learn more about the quality testing in the white paper.
Protocols
No protocols available
Specifications
Catalog Number:

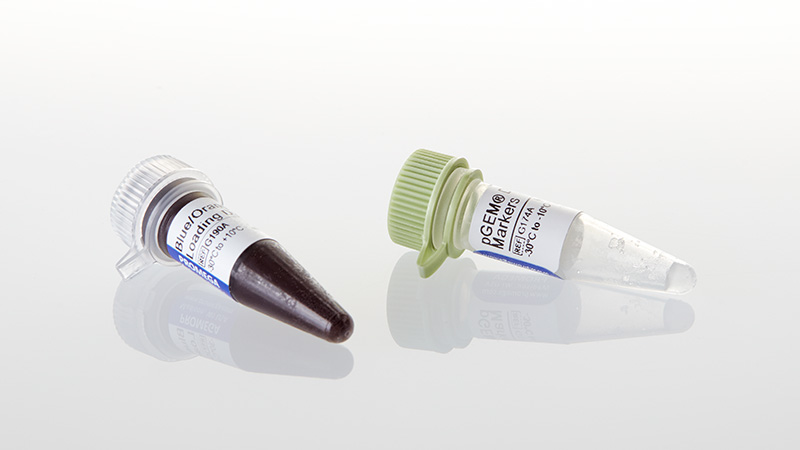

What's in the box
| Item | Part # | Choose a size |
|---|---|---|
|
pGEM® DNA Markers |
G174A | 1 × 50μg |
|
Blue/Orange 6X Loading Dye |
G190A | 1 × 1ml |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
For Laboratory Use. Outside of the United States, this product is intended for research use only unless otherwise stated.Storage Conditions
